Accessory
Signalling Flash
Location-triggered light and tone for zone warnings and andon status.

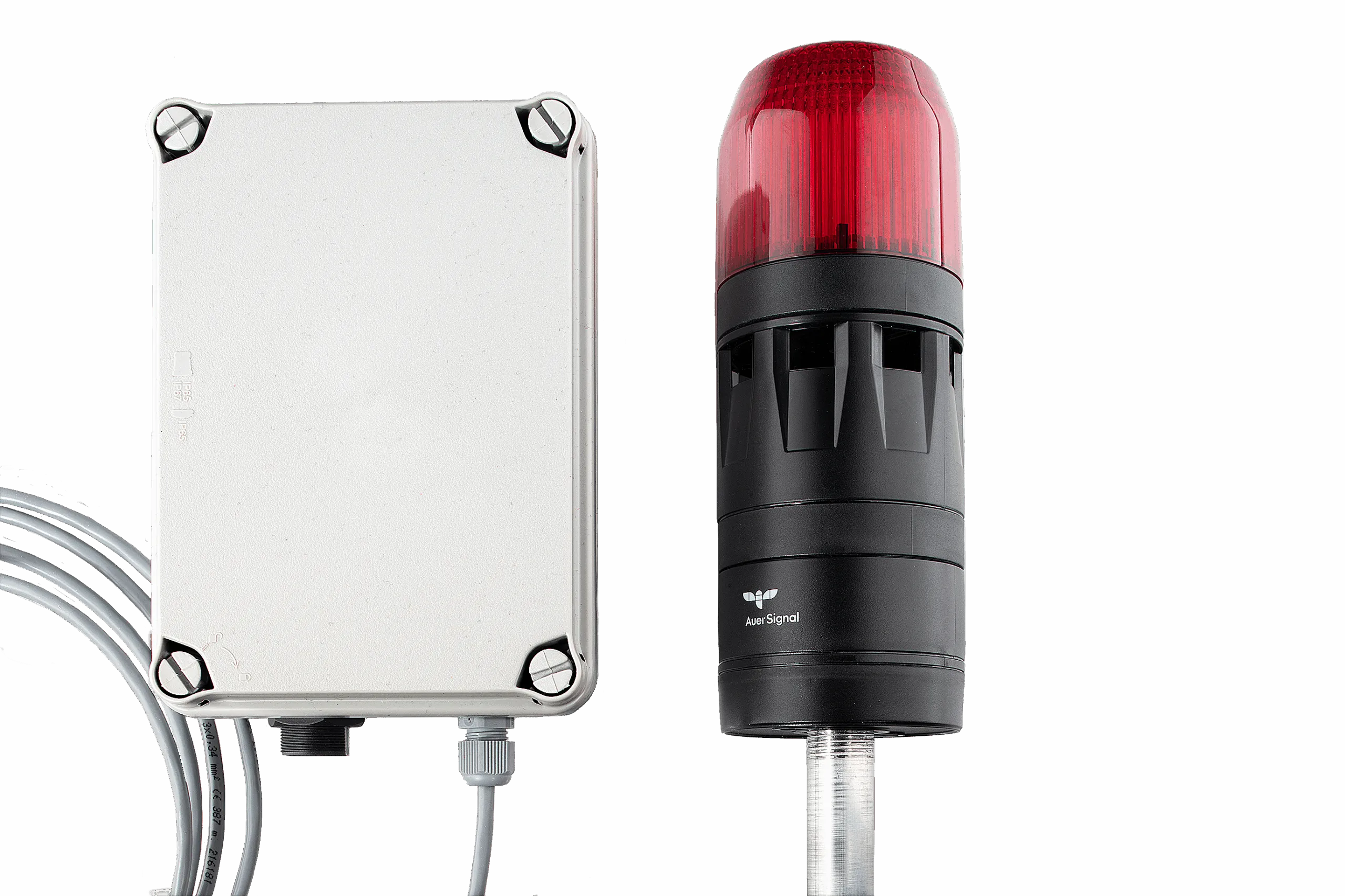

The Signalling Flash turns location events into visible and audible signals: a warning light at a crossing when a forklift approaches, a beacon at a high-voltage test bench, or andon status at a workstation. A PoE controller drives the light and tone unit.
Designed for
- Forklift and crane zones
- High-voltage test benches
- Andon status
- Restricted areas
- Triggered by Workflow Manager rules
- LED light and/or tone
- 2 flashing modes, 8 tone modes, 2 volume levels
- Powered over Ethernet
Technical specifications
| Units | |
|---|---|
| Controller | 120 × 165 × 75 mm, PoE |
| Signal unit | 70 × 260 mm, tube mount |
| Modules | Two LED modules, or one LED module and one tone module |
| Signalling | |
| Configuration | 2 flashing modes, 8 tone modes, 2 volume levels (DIP switches) |
| LED colours | Amber, red, clear, green, yellow or magenta |
| Electrical | |
| Power | Power over Ethernet, about 2.3 W total |
| Weight | About 0.75 kg |
| Environment | |
| Operating temperature | 0 to +50 °C |
| Humidity | 20–95 % RH, non-condensing |
Good to know
Works with
Devices that are often used together with the Signalling Flash.
Frequently asked questions
How is the Signalling Flash triggered?
By rules in the Workflow Manager of the Location Intelligence Platform, for example when a tagged forklift enters a zone at a crossing. The controller is powered over Ethernet.
Where should the Charging Dock go?
At a clock-in gate or shift-change point, so badges are returned and charged between shifts. It stands on a table or mounts on a wall and runs on 100–240 V AC.
When do I need an Extension Box?
When a base station has to run without power or network cabling: demos, trials, events, sports sessions and construction sites. It powers the base station from a USB-C power bank and connects it over Wi-Fi.
